Upgrade of VCSA 7.0 to 7.0U1 failed using VAMI
Yesterday I have upgraded my LAB VCSA from 7.0.0.10700 to 7.0.1.00100. First I had some difficulties using the build in online upgrade which is very likely caused by my bad internet connection. So I have downloaded the VCSA patch iso from: https://my.vmware.com/group/vmware/patch
VMware-vCenter-Server-Appliance-7.0.1.00100-17004997-patch-FP.iso
So I have uploaded the iso to a datastore and attached it to the VCSA. In the VAMI the upgrade was listed and I was able to stage the upgrade.
Then the fun started the first upgrade attempt failed with "Update installation failed, vCenter is non-operational" well I checked all services and everything was working as expected.
I fixed this issue by stopping the Appliance Management Service, delete the software_update_state.conf file and start of the Appliance Management Service.
1SSH into vCenter Appliance
2Shell
3service-control --stop applmgmt
4cd /etc/applmgmt/appliance
5rm software_update_state.conf
6service-control --start applmgmt
Afterwards I reload the VAMI in my browser, login and tried the update again.
But that would have been too easy so I run into the next issue
1020-11-26 16:19:56,909 - 25579 - update_microservice:: _runEvent: 413 - ERROR - Event callback failed: RuntimeError('generator raised StopIteration') 'Traceback (most recent call last):\n File "/usr/lib/applmgmt/update/py/vmware/appliance/update/update_microservice.py", line 213, in installEventHandler\n next(coroutine)\nStopIteration\n\nThe above exception was the direct cause of the following exception:\n\nTraceback (most recent call last):\n File "/usr/lib/applmgmt/update/py/vmware/appliance/update/update_microservice.py", line 395, in _runEvent\n next(coroutine)\nRuntimeError: generator raised StopIteration\n'
I was able to pass this issue by running the following commands:
1service-control --stop --all
2rm /etc/applmgmt/appliance/software_update_state.conf
3cp /storage/db/patching.db /var/tmp/patching.db
4rm /storage/db/patching.db
5service-control --start --all

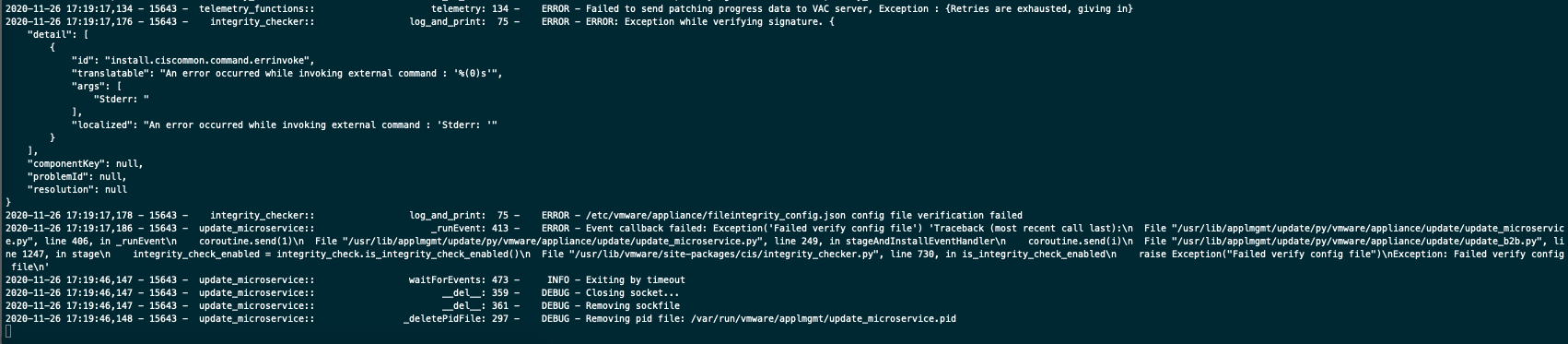

So again login to VAMI and retry the upgrade and hey the next error occured this time a signature could not be verified.
![](/images/2020/11/upgrade_vami_signature.png)
Ok maybe the iso is corrupt so lets check the md5sum.

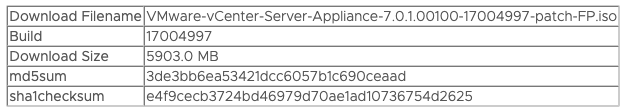

md5sum is not on the Patch download page its in the release notes ...
https://docs.vmware.com/en/VMware-vSphere/7.0/rn/vsphere-vcenter-server-70u1a-release-notes.html
![](/images/2020/11/md5sum_vcsa_patch_iso.png)
1ssh root@ESXI-IP
2cd /vmfs/volumes/datastore01
3md5sum VMware-vCenter-Server-Appliance-7.0.1.00100-17004997-patch-FP.iso
Result:
1[root@esxi:/vmfs/volumes/5f98348b-50ae5d4c-aaa5-246e96167ce4] md5sum VMware-vCenter-Server-Appliance-7.0.1.00100-17004997-patch-FP.iso
2md5sum: can't open 'VMware-vCenter-Server-Appliance-7.0.1.00100-17004997-patch-FP.iso': Device or resource busy
The iso was still connected to my VCSA. So quickly disconnected and re-run the md5sum command.
1md5sum VMware-vCenter-Server-Appliance-7.0.1.00100-17004997-patch-FP.iso
23de3bb6ea53421dcc6057b1c690ceaad
md5 sum is ok
So I decided to stop the upgrade using the VAMI and try a different way to upgrade using the appliance shell.
- Attach the VMware-vCenter-Server-Appliance-7.0.1.00000-16860138-patch-FP.iso file to the vCenter Server CD or DVD drive.
- Log in to the appliance shell as a user with super administrative privileges (for example, root) and run the following commands: To stage the ISO:
1software-packages stage --iso
To see the staged content:
1software-packages list --staged
To install the staged rpms:
1software-packages install --staged
Output:
1[2020-11-26T17:30:56.331] : Validating software update payload
2[2020-11-26 17:30:56,094] : Running validate script.....
3[2020-11-26T17:31:06.331] : Validation successful
4[2020-11-26 17:31:06,144] : Copying software packages
5[2020-11-26T17:31:06.331] : ISO mounted successfully 207/207
6[2020-11-26T17:32:31.331] : ISO unmounted successfully
7[2020-11-26 17:32:31,956] : Running system-prepare script.....
8[2020-11-26 17:32:41,008] : Running test transaction ....
9[2020-11-26 17:32:45,102] : Running prepatch script.....
10[2020-11-26 17:35:06,430] : Upgrading software packages ....
11[2020-11-26T17:40:03.331] : Setting appliance version to 7.0.1.00100 build 17004997
12[2020-11-26 17:40:03,239] : Running patch script.....
13[2020-11-26 18:00:54,385] : Starting all services ....
14[2020-11-26T18:00:57.331] : Services started.
15[2020-11-26T18:00:57.331] : Installation process completed successfully
Finally it worked.
